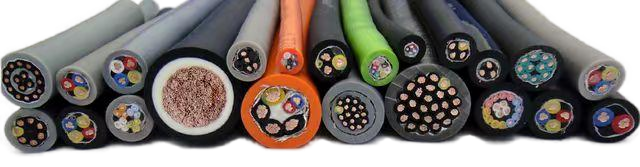

AWG American Wire Gauge and Metric Comparison Table

May,29,2024visited: 344

What is AWG? When negotiating with numerous clients, many friends have mentioned this issue. Therefore, this information has been specially organized for more friends to refer to.

AWG (American Wire Gauge) is actually the abbreviation of the American wire standard, AWG is a function of wire thickness (measured in inches).

Guage			Diameter	Area	Guage			Diameter	Area	Guage			Diameter	Area
A.W.G	S.W.G	B.W.G.	mm	mm2	A.W.G	S.W.G	B.W.G.	mm	mm2	A.W.G	S.W.G	B.W.G.	mm	mm2
-	7/0	5/0	12.7	12.6.7	10	-	-	2.588	5.262	-	30	-	0.315	0.07791
-	6/0	-	11.786	109.1	-	-	13	2.413	4.573	-	-	30	0.305	0.07297
4/0	-	-	11.684	107.2	-	13	-	2.337	4.289	-	31	-	0.295	0.06819
-	-	4/0	11.532	104.4	11	-	-	2.305	4.172	29	-	-	0.286	0.06422
-	5/0	-	10.973	94.56	-	-	14	2.108	3.491	-	32	-	0.274	0.05908
-	-	3/0	10.795	91.52	12	-	-	2.053	3.309	30	-	-	0.255	0.05097
3/0	-	-	10.404	85.03	-	14	-	2.032	3.243	-	33	31	0.254	0.05067
-	4/0	-	10.16	81.07	-	15	15	1.829	2.627	-	34	-	0.234	0.04289
-	-	2/0	9.652	73.17	13	-	-	1.828	2.624	-	-	32	0.229	0.04104
-	3/0	-	9.449	70.12	-	-	16	1.651	2.141	31	-	-	0.227	0.04039
2/0	-	-	9.266	67.42	14	-	-	1.628	2.081	-	35	-	0.213	0.03575
-	2/0	-	8.839	61.36	-	16	-	1.626	2.075	-	-	33	0.203	0.03243
-	-	1/0	8.536	58.58	-	-	17	1.473	1.705	32	-	-	0.202	0.03203
1/0	-	-	8.252	53.49	15	-	-	1.45	1.65	-	36	-	0.193	0.02927
-	1/0	-	8.23	53.19	-	17	-	1.422	1.589	33	-	-	0.18	0.0254
-	1	1	7.62	45.6	16	-	-	1.291	1.309	-	-	34	0.178	0.02483
1	-	-	7.348	42.41	-	-	18	1.245	1.217	-	37	-	0.173	0.02343
-	-	2	7.214	40.87	-	18	-	1.219	1.167	34	-	-	0.16	0.02014
-	2	-	7.01	38.6	17	-	-	1.15	1.037	-	38	-	0.152	0.01824
-	-	3	6.579	33.99	-	-	19	1.067	0.8938	35	-	-	0.143	0.01597
2	-	-	6.544	33.63	18	-	-	1.024	0.8226	-	39	-	0.132	0.0137
-	3	-	6.401	32.18	-	19	-	1.016	0.8107	36	-	35	0.127	0.01267
-	-	4	6.045	28.7	-	20	-	0.914	0.6561	-	40	-	0.122	0.01167
-	4	-	5.893	27.27	19	-	-	0.912	0.6532	37	-	-	0.113	0.01005
3	-	-	5.827	26.66	-	-	20	0.889	0.6207	-	41	-	0.112	0.00981
-	-	5	5.588	24.52	-	21	21	0.813	0.5191	-	42	36	0.102	0.008107
-	5	-	5.385	22.77	20	-	-	0.812	0.5178	38	-	-	0.101	0.007968
4	-	-	5.189	21.15	21	-	-	0.723	0.4105	-	43	-	0.0914	0.006567
-	-	6	5.156	20.88	-	22	22	0.711	0.3973	39	-	-	0.0897	0.006319
-	6	-	4.877	18.66	22	-	-	0.644	0.3256	-	44	-	0.0813	0.005012
5	-	-	4.621	16.77	-	23	23	0.635	0.3167	40	-	-	0.0799	0.005012
-	-	7	4.572	16.42	-	-	-	0.61	0.2919	41	45	-	0.0711	0.003973
-	7	-	4.47	15.7	23	-	-	0.573	0.2581	42	-	-	0.0633	0.003151
-	-	8	4.191	13.8	-	24	24	0.559	0.2452	-	46	-	0.061	0.002919
6	-	-	4.115	13.3	24	-	-	0.511	0.2047	43	-	-	0.0564	0.002499
-	8	-	4.064	12.97	-	25	25	0.508	0.2027	-	47	-	0.0508	0.002027
-	-	9	3.759	11.1	-	26	26	0.457	0.1642	44	-	-	0.0502	0.001982
7	-	-	3.665	10.55	25	-	-	0.455	0.1623	45	-	-	0.0447	0.001572
-	9	-	3.668	10.51	-	27	-	0.417	0.1363	-	48	-	0.0406	0.001297
-	-	10	3.404	9.098	-	-	27	0.406	0.1297	46	-	-	0.0398	0.001246
8	-	-	3.264	8.368	26	-	-	0.405	0.1255	47	-	-	0.0355	0.0009884
-	10	-	3.251	8.302	-	28	-	0.376	0.111	48	-	-	0.0316	0.0007838
-	-	11	3.048	7.297	27	-	-	0.361	0.1021	-	49	-	0.0305	0.0007297
-	11	-	2.946	6.818	-	-	28	0.356	0.09932	49	-	-	0.0281	0.0005216
9	-	-	2.906	6.632	-	29	-	0.345	0.09372	-	50	-	0.0254	0.0005067
-	-	12	2.769	6.02	-	-	29	0.33	0.08563	50	-	-	0.0251	0.0004929
-	12	-	2.642	5.481	28	-	-	0.321	0.08097
