Details

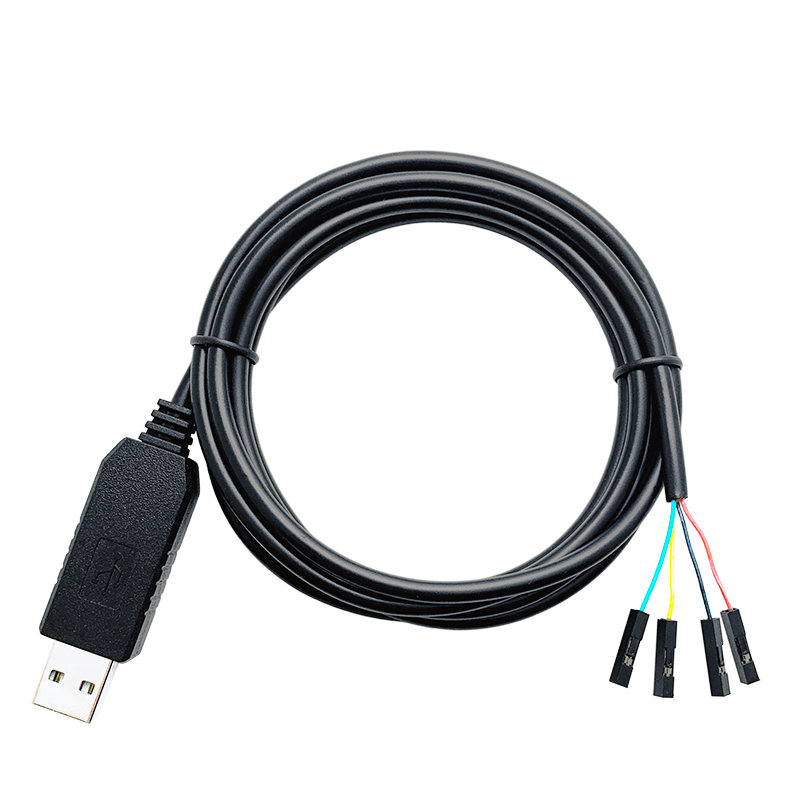

6FT USB RS232 to TTL 5V 2.54mm Dupont Header 4 Pin UART Serial Cable FTDI Chip for Windows,Linux and Mac OS
| Brand | HAOKING |
| Connector Type | USB Type A, 6 pin header |
| Cable Type | USB |
| Compatible Devices | Laptop, Personal Computer, Router, Modem, GPS Navigation System synthesizers, machine tool numerical controls, printers and video display terminals, Personal Computer, Router, PLD, GPS Navigation Systemsynthesizers, machine tool numerical controls, printers and video display terminals, Personal Computer, Router, PLD, GPS Navigation System synthesizers, machine tool numerical controls, printers and video display terminals, Personal Computer, Router, PLD, GPS Navigation System |
| Special Feature | FTDI Chip |
About this item

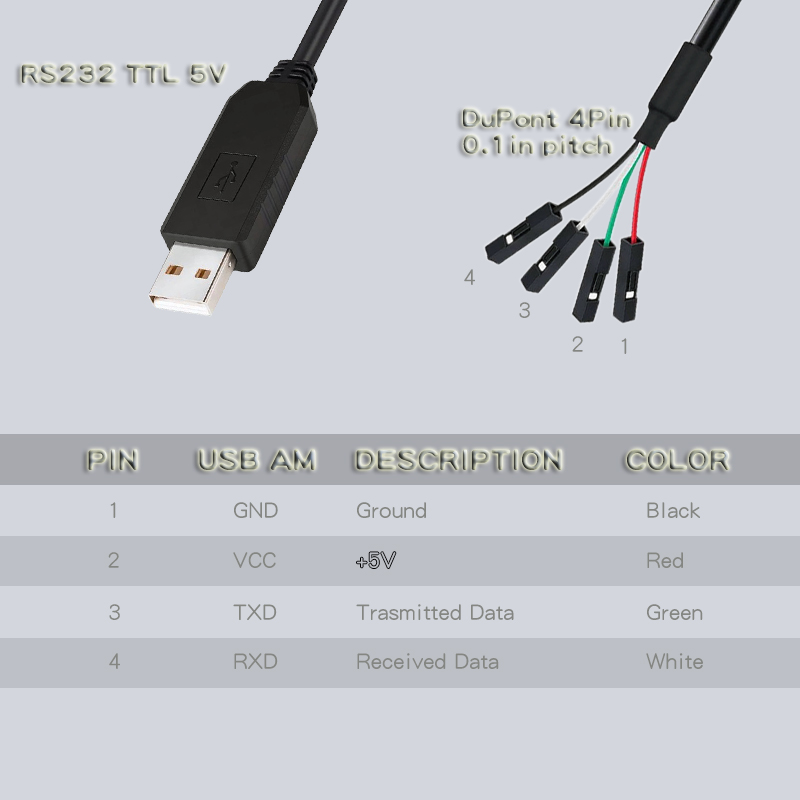

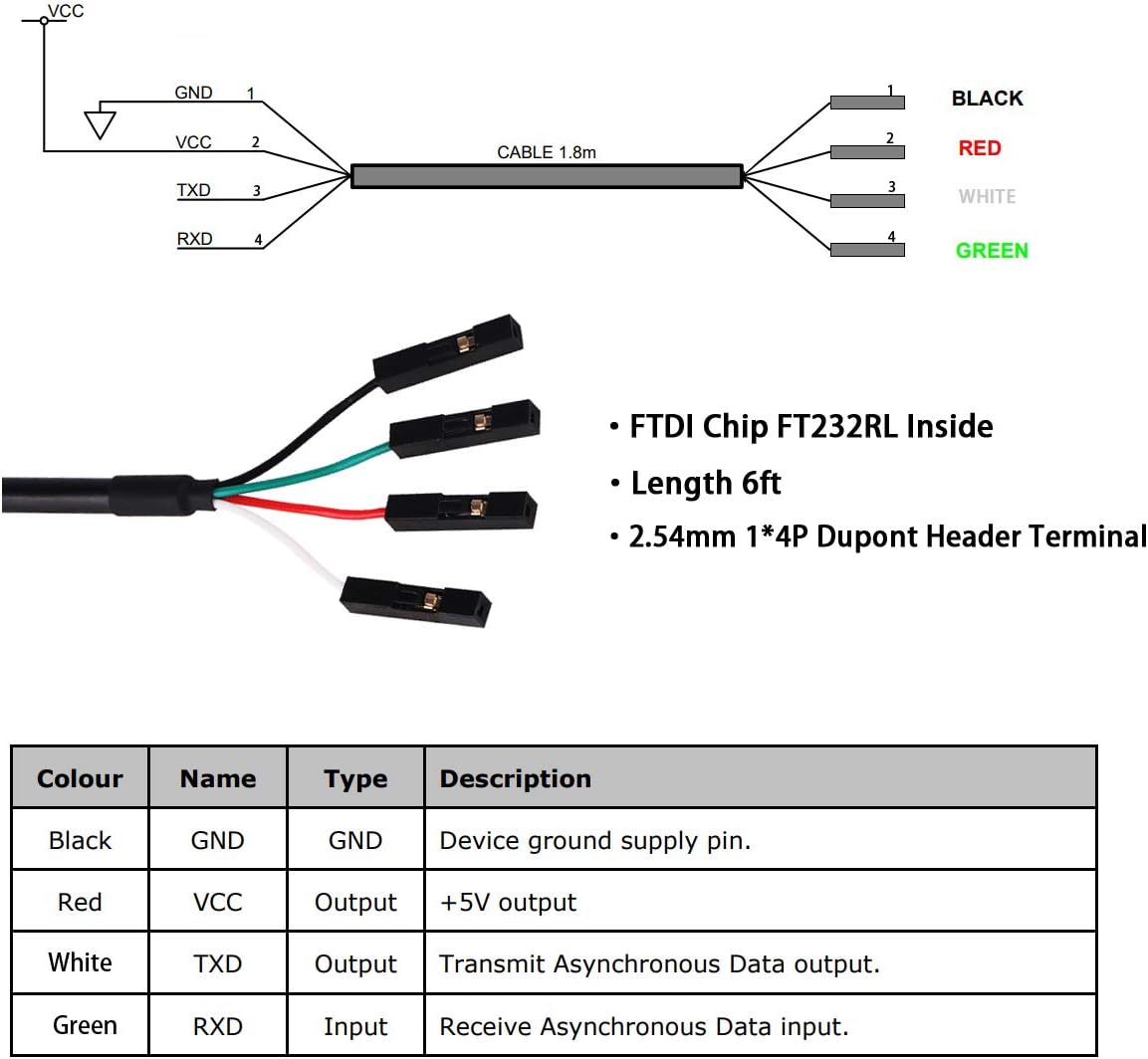

6FT USB to TTL 5v 4 Pin Serial FTDI Cable Connect directly to a microcontroller UART or I/O pins.
The FT232RL has a low 15mA operating supply current and a very low USB suspend current of approximately 70μA. (Note that during suspend mode, the current drawn by application should not exceed 2.5mA to remain USB compliant)
The TTL cables are capable of operating over an extended temperature range of -40º to +85º C thus allowing them to be used in automotive or industrial applications.
