UL Style 1007
Details
UL Style 1007 Instructions. Rated temperature:80℃; Rated voltage:300V; Marks: E495753 UL AWM 1007 XX AWG 80℃ 300V VW-1 YAOFENG; Specification: Single or multiple strand copper lines twisted as inner conductor, 32～16AWG tinned or bare copper line, PVC insulation; Passed through UL VW-1, flammability test; |
|

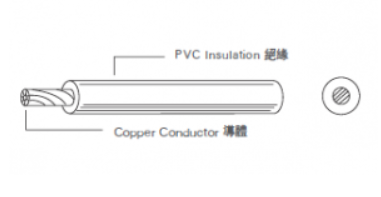

Product construction and typical functional parameters:
| Conductor | Insulation | Maximum conductor DC resistance (Ω/Kft,20℃) | Minimum insulation resistance (MΩ-km,20℃) | Pressure resistance(ACV,1min) | |||
| American wire gauge (AWG) | Construction (No/mm) | External diameter (mm) | Thickness (mm) | External diameter (mm) | |||
| 30 | 7/0.100 | 0.30 | 0.42 | 1.15 | 114.4 | 15 | 2,000 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 72.0 | 15 | 2,000 |
| 26 | 7/0.160 | 0.48 | 0.41 | 1.30 | 45.2 | 15 | 2,000 |
| 24 | 11/0.160 | 0.61 | 0.40 | 1.40 | 27.25 | 15 | 2,000 |
| 22 | 17/0.160 | 0.76 | 0.42 | 1.60 | 16.7 | 15 | 2,000 |
| 20 | 21/0.178 | 0.95 | 0.42 | 1.80 | 10.4 | 15 | 2,000 |
| 18 | 34/0.178 | 1.21 | 0.41 | 2.05 | 6.64 | 15 | 2,000 |
| 16 | 26/0.254 | 1.49 | 0.43 | 2.35 | 4.18 | 15 | 2,000 |
